HRI Dependencies Configuration/Setup¶

This section is intended to help guide you to configure the dependent services that HRI uses in your own (public/private) IBM Cloud account.

Create Elasticsearch cloud resource¶

HRI Requires an Elasticsearch service deployment in your IBM Cloud account. Navigate to the Resource List in your Cloud account. Click the Create resource button in the top right corner. Enter “Elasticsearch” in the catalog search bar and then select the Databases for Elasticsearch tile.

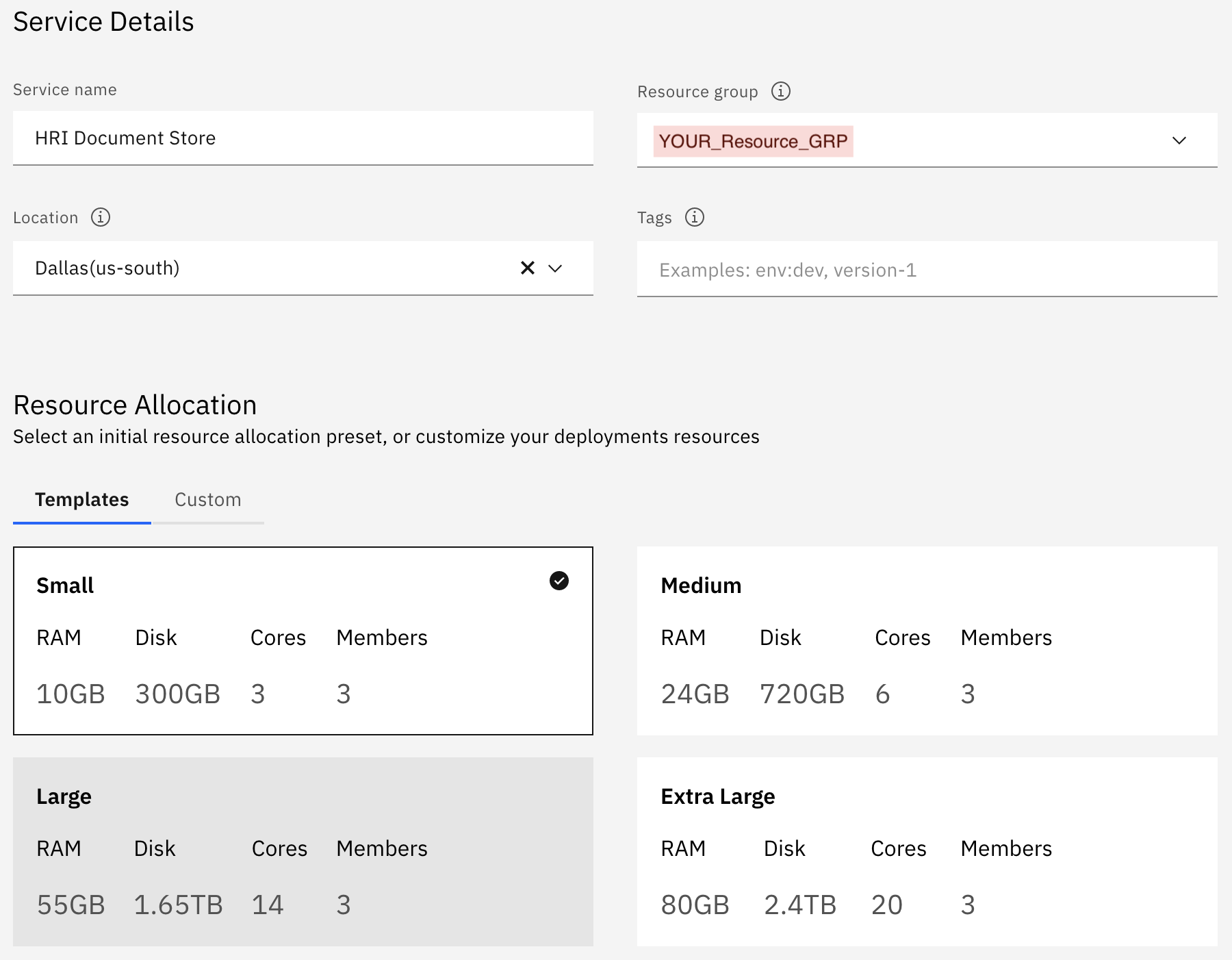

Select the appropriate region and then configure the resource by providing a service name and resource group (Note: for all configuration examples below, the Resource Group is “YOUR_Resource_GRP”).

You will also need to specify the desired resource allocations for Elasticsearch. Depending on your expected usage, your values may differ, but the values shown below will be sufficient in most cases. Then click the Create button.

elastic-configure

Once the Elasticsearch instance becomes active, you will need to set an “admin” password. This is done from the Settings page of the Elasticsearch instance.

elastic-admin-password

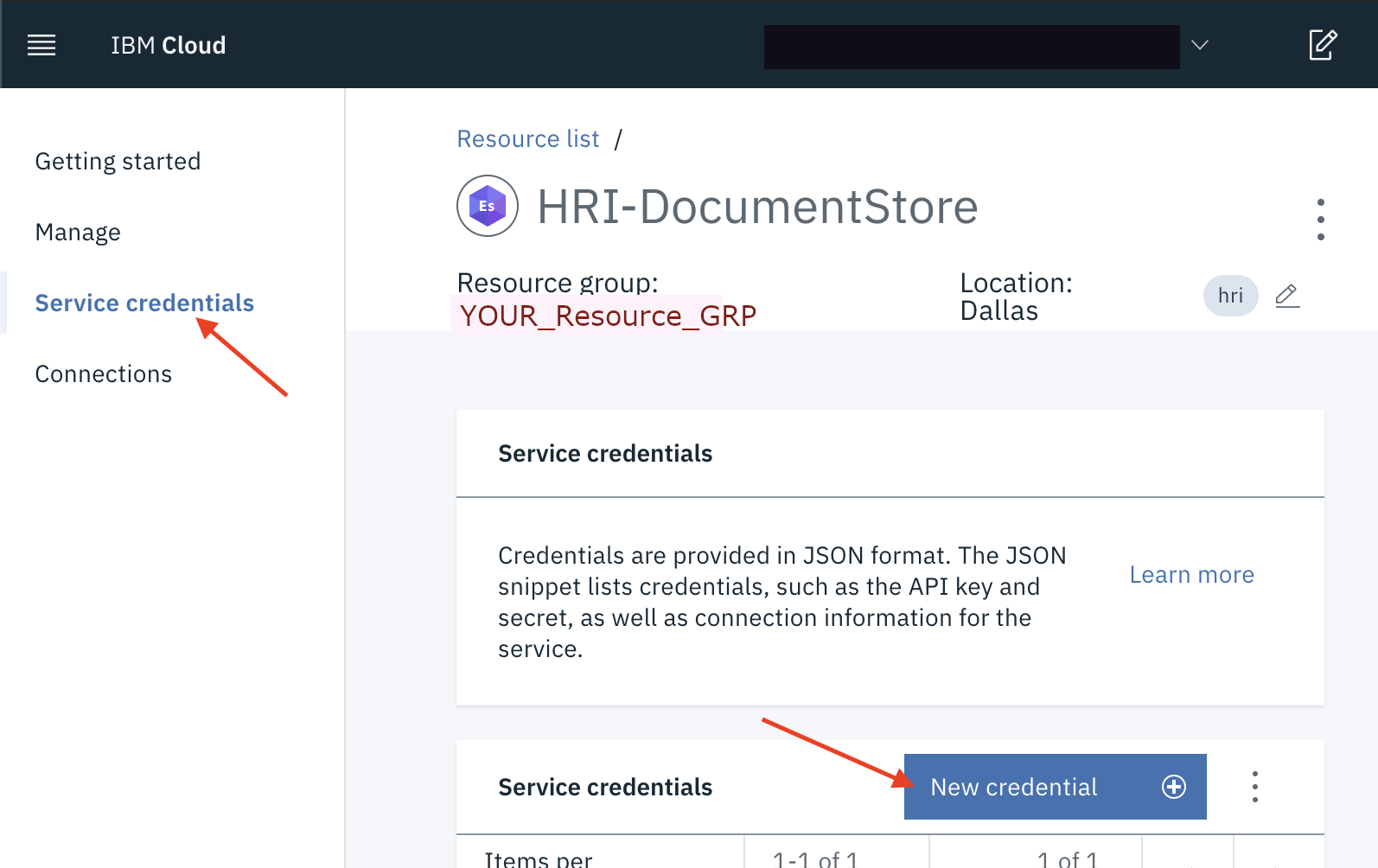

Click the Service credentials link, and then click the New credential button. Provide a name for the service credential and then add it. This will be needed by the HRI Management API deployment.

elastic-create-cred

Create Event Streams cloud resource¶

HRI also Requires an Event Streams(Kafka) service deployment in your IBM Cloud account.

Navigate to the Resource List in your Cloud account. If an instance of Event Streams already exists in your Cloud account, then the HRI may be able to share that existing instance. If an Event Streams instance does not already exist, then create one by clicking the Create resource button in the top right corner. Enter “Event Streams” in the catalog search bar and then select the Event Streams tile.

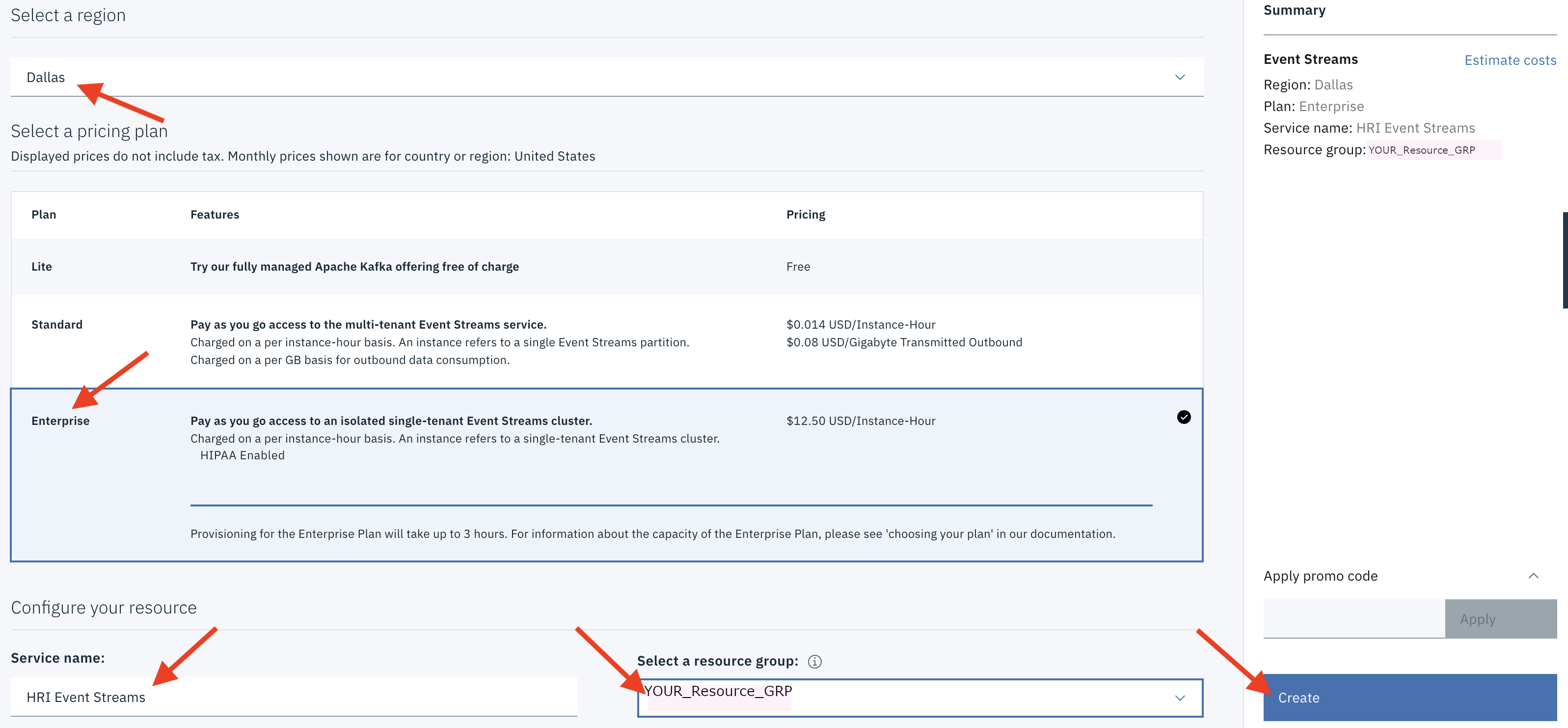

Fill in an appropriate region, service name, and resource group. The Enterprise pricing plan (with custom key management via Key Protect) is required for HIPAA data processing. After creating an Enterprise instance of Event Streams, custom key management via Key Protect will need to be explicitly enabled (See Event Streams documentation).

NOTE: The Event Streams Enterprise plan is expensive, which is why we recommend sharing an instance, if possible. In non-Production environments, a Standard plan may be used for testing with non-HIPAA data if your organization’s security team approves.

event-streams-configure

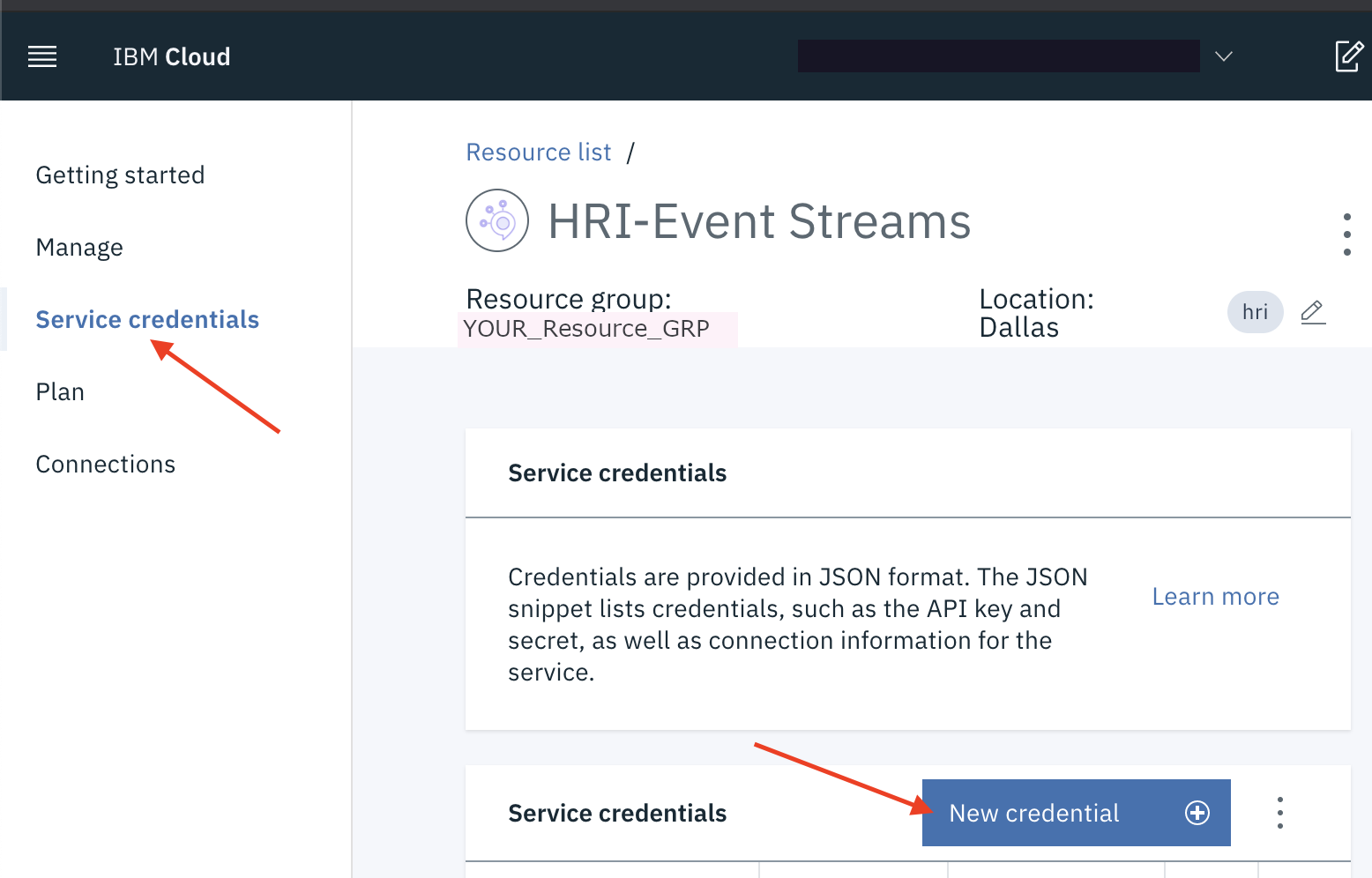

Click the Service credentials link, and then click the New credential button to create a service credential with writer permissions. Provide a name for the service credential. This will be needed by the HRI Management API deployment.

event-streams-create-cred

Create Authorization Service¶

The HRI Management API requires an authorization service. Integration testing has been performed with IBM Cloud App ID, but any compliant service can be used. See Authorization for more details about the requirements and how to set up an App ID cloud service.

Deploy the HRI Management API to Kubernetes¶

The Management API is packaged in a docker container for Kubernetes deployments and available on GitHub. The service is stateless, so you can scale up to as many pods as needed or even deploy multiple instances that use the same Elasticsearch, Kafka, and Authorization services.

The Management API process only needs a valid configuration, which can be provided by any combination of command line arguments, environment variables, and a yaml file. Conflicts are resolved in the order: command line arguments (highest priority), environment variables, and yaml file(lowest priority). Below is a table of the configuration options.

CLI Flag	Description	Required
`-config-path`	Path to a config file, default “./config.yml”
`-elastic-crn`	Elasticsearch service CRN	Yes
`-elastic-url`	The base url to the Elasticsearch instance	Yes
`-elastic-cert`	Elasticsearch TLS public certificate	Yes
`-elastic-username`	Elasticsearch user name	Yes
`-elastic-password`	Elasticsearch password	Yes
`-kafka-admin-url`	Kafka administration url	Yes
`-kafka-brokers`	A list of Kafka brokers, separated by “,”	Yes
`-kafka-properties`	A list of Kafka properties, entries separated by “,”, key value pairs separated by “:”	Yes
`-auth-disabled`	`true` to disable OAuth Authorization, default: false
`-oidc-issuer`	The base URL of the OIDC issuer to use for OAuth authentication (e.g. https://us-south.appid.cloud.ibm.com/oauth/v4/).	If `-auth-disabled` is false.
`-jwt-audience-id`	The ID of the HRI Management API within your authorization service.	If `-auth-disabled` is false.
`-tls-enabled`	Toggle enabling an encrypted connection via TLS, default: false
`-tls-cert-path`	Path to the TLS certificate.	If `-tls-enabled` is true.
`-tls-key-path`	Path to the TLS key.	If `-tls-enabled` is true.
`-new-relic-enabled`	True to enable New Relic monitoring, default: false
`-new-relic-app-name`	Application name to aggregate data under in New Relic.	If `-new-relic-enabled` is true.
`-new-relic-license-key`	New Relic license key.	If `-new-relic-enabled` is true.
`-validation`	True to enable record validation, default false
`-log-level`	Minimum Log Level for logging output. Available levels are: Trace, Debug, Info, Warning, Error, Fatal and Panic. Default “info”)

The associated environment variable is named by removing the leading -, capitalizing all characters, and replacing remaining - with _. For example, the -auth-disabled flag has the AUTH_DISABLED environment variable.

Yaml file entries are named by removing the leading -. For example, the -auth-disabled flag has the auth-disabled yaml entry.

Validation Processing¶

Validation processing is an optional feature that validates the data as it flows through the HRI. See Validation for details on the validation performed and customization options. See Processing Flows for details on how it fits into the overall architecture.

Validation processing is built on Apache Flink, a highly available stateful stream processing framework, and requires a ‘Session’ cluster when enabled. See their deployment documentation for details on how to deploy a cluster. See the Administration page for details about how to deploy validation jobs.

What’s Next¶

To set up your first Tenant and Data Integrator go to the Administration page.

For detailed info on how the concept of Tenants and the Data Integrator role underpin the HRI Multitenancy approach, see the Multitenancy page.
